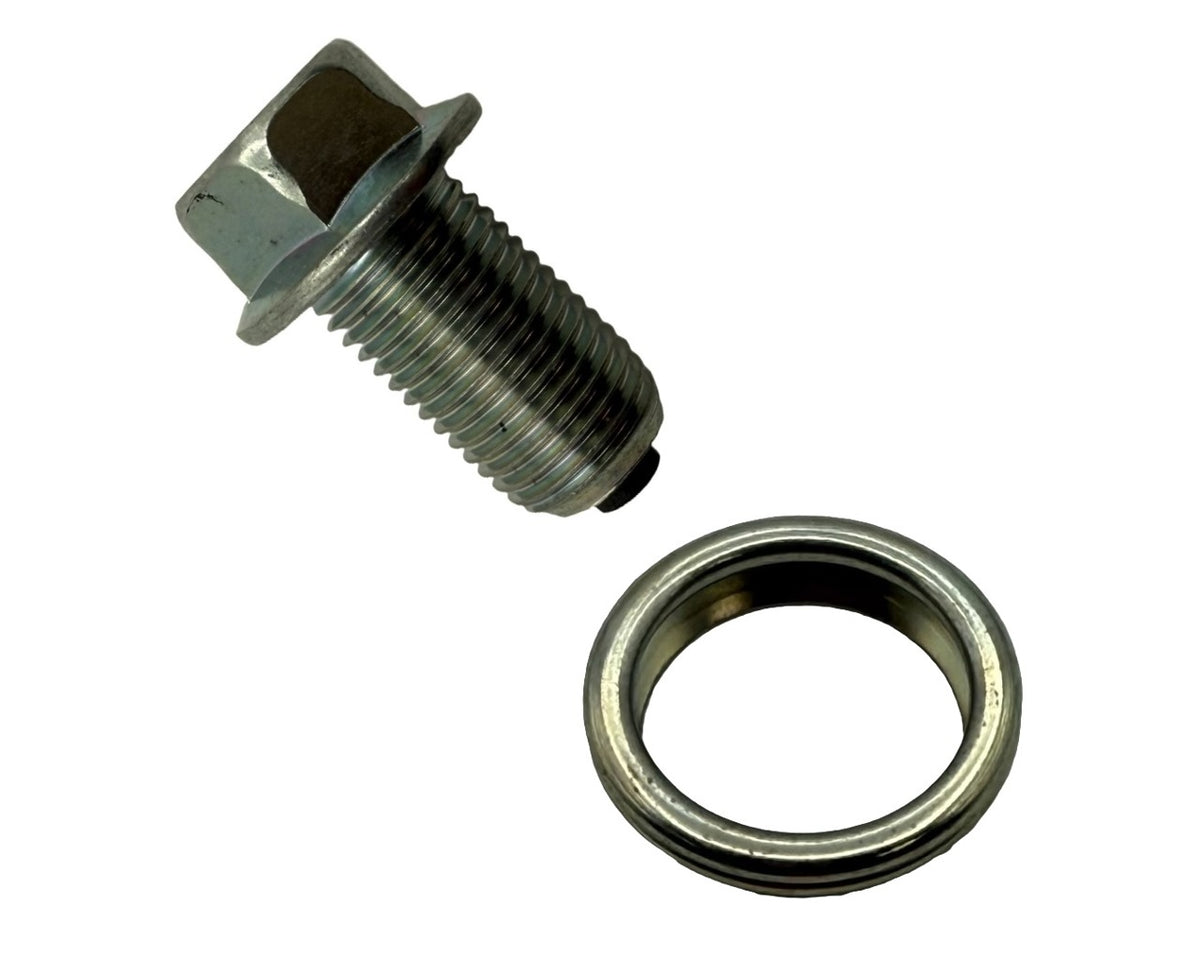

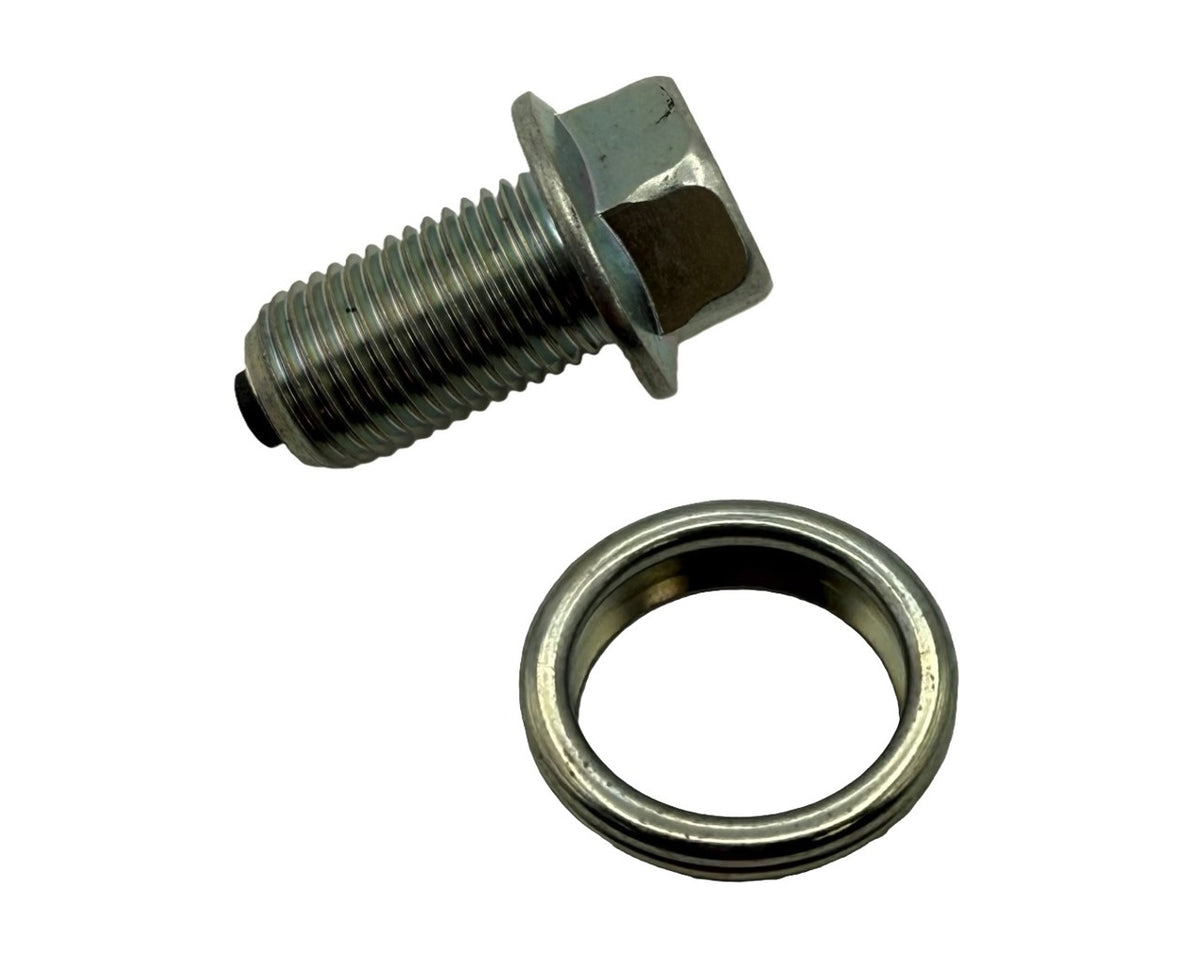

Suzuki Oil Drain Bolt Kit with Crush Washer Motorcycle/ATV 09247-12011

• Precision-machined, high-strength steel construction resists thread galling, stripping, and rounded hex heads.
• Direct OEM factory replacement engineered to original crankcase specifications for proper thread engagement and sealing. (KIT WITH CRUSH WASHER)
• Designed to seat flush against crankcase drain surfaces to eliminate oil weeping and prevent undercarriage leaks.
• Essential service component to replace rounded, worn, cross-threaded, or damaged engine drain plugs during routine maintenance.
• Standard factory thread pitch and hex head sizing ensure accurate torque application and straightforward servicing.

[OVERVIEW]
Protect your engine and maintain a leak-free crankcase with this genuine factory oil drain plug bolt. Identified under OEM part number 09247-12011, this authentic replacement hardware restores proper crankcase sealing to prevent oil loss, weeping, and engine damage. Engineered to exact factory tolerances, it features precision-cut threads and high-tensile steel construction that withstand repeated service intervals and torque specifications without stripping or galling delicate engine case threads. (KIT WITH CRUSH WASHER)

[KEY FEATURES]
- Direct OEM crankcase plug delivers exact factory thread pitch and seat alignment
- Heavy-duty steel construction prevents rounding of the bolt head during routine servicing
- Flanged base design ensures complete, even compression against the sealing washer
- Direct replacement for missing, stripped, damaged, or rounded drain hardware
- Restores original torque specs to prevent undercarriage drips and oil loss

[FITMENT]
DIRT BIKE / DUAL-SPORT:
- 2000-2007 DR-Z400E[cite: 7]
- 2000-2004 DR-Z400 (Kick Start)[cite: 7]
- 2000-2026+ DR-Z400S / DR-Z4S[cite: 6, 7]
- 2005-2026+ DR-Z400SM[cite: 6, 7]

STREET BIKE:
- 2003-2026+ SV650 / SV650S / SV650A / SV650XA[cite: 6]
- 2009, 2013, 2015 SFV650 Gladius[cite: 6]
- 2004-2025 DL650 / DL650A / DL650XA V-Strom 650 / 650XT / Adventure[cite: 6, 7]
- 2005-2009, 2011, 2013-2015, 2017-2019 Boulevard S40 / Savage 650 (LS650 / LS650B)[cite: 6]
- 2005-2009, 2012-2015, 2017-2019 Boulevard M50 (VZ800 / VZ800Z / VZ800C / VZ800T)[cite: 6]
- 2006-2009 Boulevard S50 (VS800)[cite: 6]
- 2009 Boulevard S83 (VS1400)[cite: 6]
- 2006-2011, 2013-2015, 2017-2023, 2025 Boulevard C50 / C50T / B.O.S.S. (VL800 / VL800C / VL800T)[cite: 6]

ATV:
- 2003-2004 QuadSport Z400 / Limited (LT-Z400 / LT-Z400F)[cite: 5]

[SPECIFICATIONS]
- Part Number: 09247-12011
- Component: Engine oil drain bolt / crankcase plug
- Material: High-tensile steel
- Finish: Factory zinc / silver corrosion-resistant coating
- Installation: Standard socket wrench / hex drive to factory torque specifications
OEM Numbers: 09247-12011 0924712011KIT
